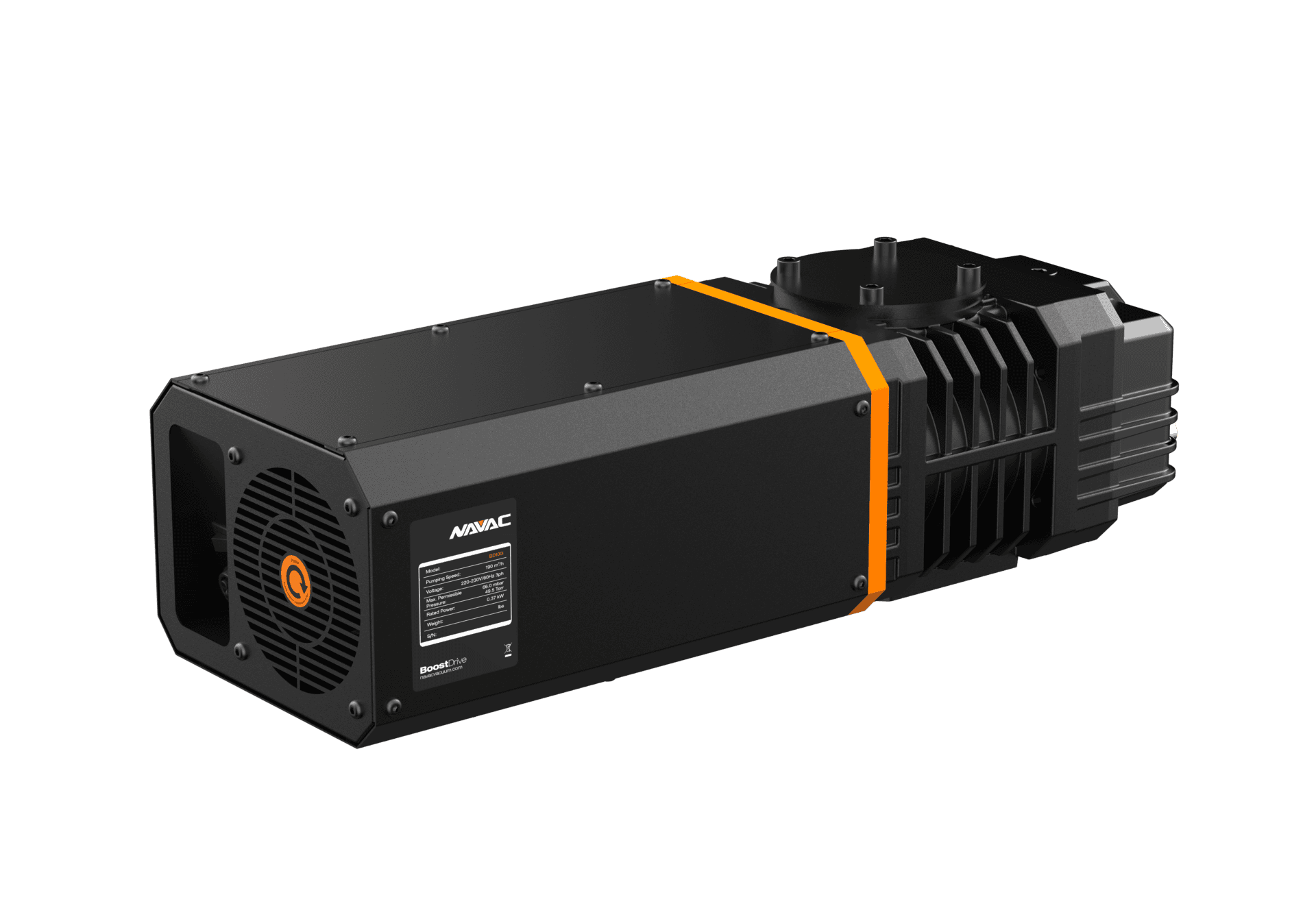

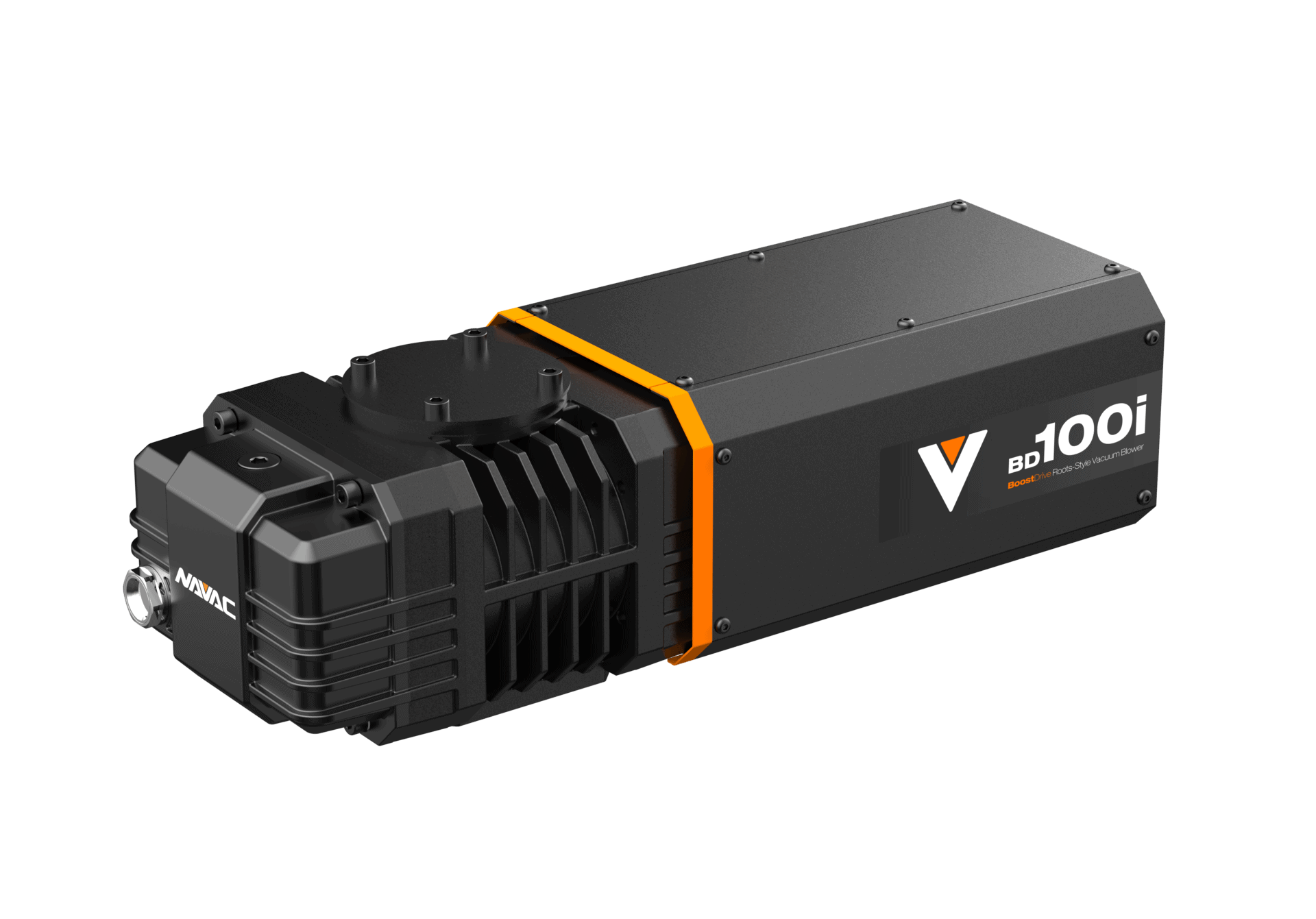

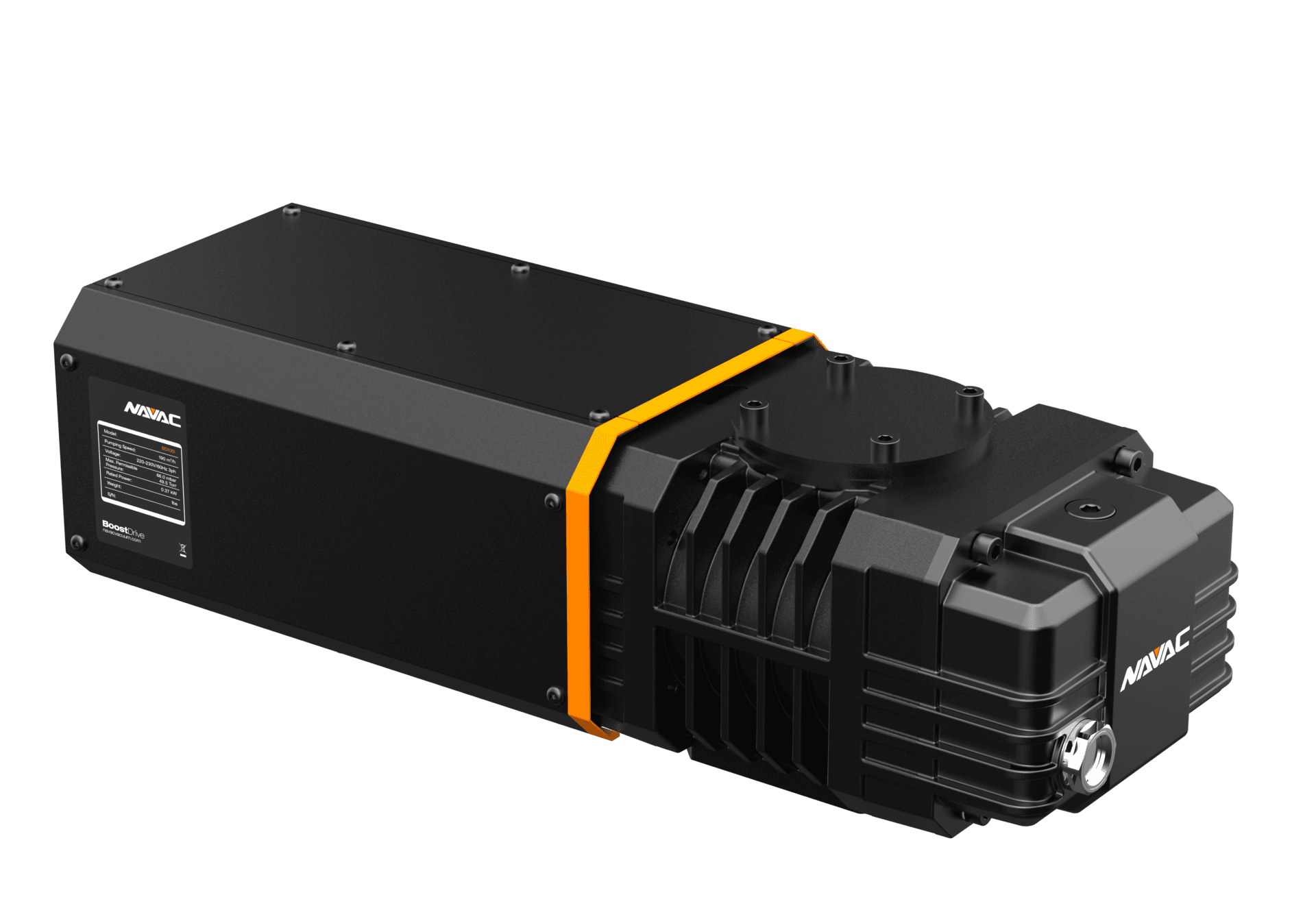

BD100i

BD100i

BoostDrive is a high-speed roots-style blower designed to enhance your backing pump in a compact design. With performance in mind, pump downtime is decreased while optimizing ultimate vacuum pressure. This unique design makes it an excellent choice for various industries, including chemical processing, pharmaceutical manufacturing, and semi-conductor coating.

  • Performance: With pumping speed up to 600 m3/h, this roots-style blower will outperform pumps twice its size.
  • Compact Design: As one of the most innovative designs, this dry roots-style blower delivers fast pumping speed in an ultra-compact package.
  • System flexibility: Designed with flexibility in mind, this roots-style blower can be paired with a backing pump to optimize pumping efficiency.
  • Integrated Frequency Converter: The BDi series’ integrated frequency converter gradually ramps the booster to full speed for easy roughing pump integration.
Purchase through NAVAC’s Authorized Partners

Technical Specification

Specification Units BD100i
Performance
Pumping speed (50Hz) m3/h (CFM) 190 (112)
Pumping speed (60Hz) m3/h (CFM) 190 (112)
Recommended backing pump ED30/DD48
Vacuum / Pressure
Max permissible pressure difference Torr (mbar) 50 (66)
Connections / Cooling
Cooling Method Air
Inlet / Exhaust VG50 / VF50
Noise level dB(A) 62
Communication VFD
Oil / Electrical
Oil Type Hydrocarbon
Recommended Oil NPO100
Power Supply 200-240V, 50/60 Hz, Three Phase
Physical
Weight lbs (kg) 50.7 (23)
Dimensions Inches (mm) 19.4 x 8.3 x 6.3 (493 x 211 x 160)

Resources
