UniDrive UD300 Rotary Vane Pump | NAVAC Industrial Vacuum

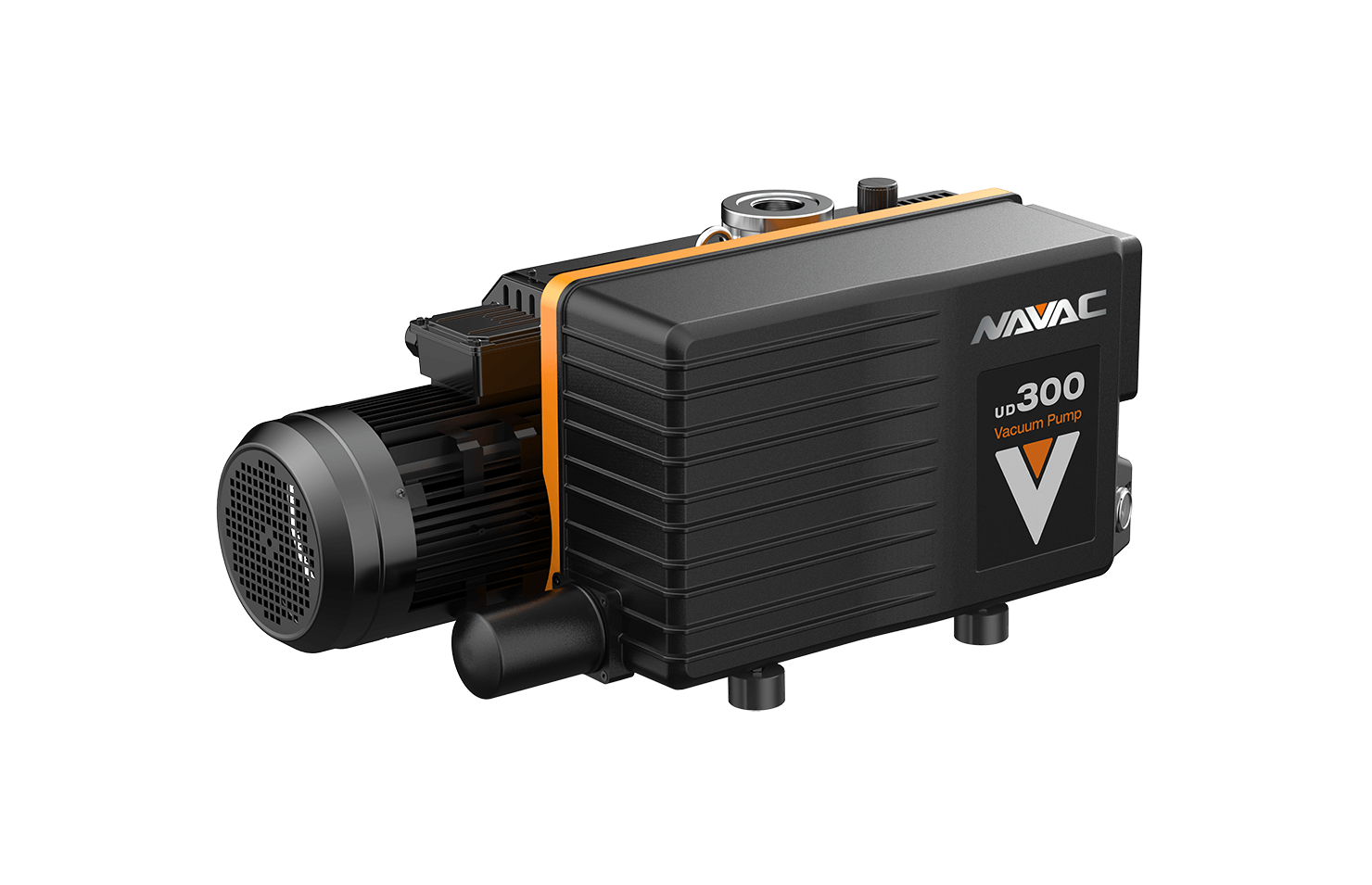

UD300

UniDrive is a single-stage, oil-sealed rotary vane vacuum pump optimized for applications with high moisture content. Engineered with performance in mind, UniDrive offers unmatched reliability for industries such as food processing and packaging.

Integrated Oil Mist Filter: High-efficiency oil mist filters prevent oil vapor from exhausting into the equipment space and smoking while also prolonging the service life.

Gas Ballast: Adjustable gas ballast allows for the different requirements of condensable gas to be exhausted

Proprietary Motor: In-house designed and manufactured AC motor provides longevity and robust operation

Technical Specification

Pumping speed (50/60Hz)	m³/h (CFM)	300 (177), 60Hz
Ultimate Pressure with Gas Ballast	mbar (Torr)	0.1 (0.075)
Ultimate Pressure with Gas Ballast I	mbar (Torr)	0.2 (0.15)
Ultimate Pressure with Gas Ballast II	mbar (Torr)	1 (0.75)
Water vapor tolerance with Gas Ballast I	mbar (Torr)	30 (22.5)
Water vapor tolerance with Gas Ballast II	mbar (Torr)	50 (37.5)
Power Supply	3ph , 220-230/460V 60 Hz; 380-415V 50Hz
Power Rating	kW	7.5
IP Level		IP54
Motor Speed (50/60Hz)	rpm	1440/1720
Inlet/Outlet		G2″ / G2″
Oil Capacity	L	8
Noise Level (50/70Hz)	dB	≤79(60Hz)
Weight	kg	215
Weight	lbs	474
Dimensions (LWH)	mm	1033.8538.5434.3
Dimensions (LWH)	inch	40.721.217.1

UD300

UD300

Technical Specification
